Schema dacapomodel.xsd


schema location:  dacapomodel.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://it.bt.aau.dk/dacapo/

Elements  Complex types  Simple types
Bygning  BygningType  GlobalIdType
DACAPO  DelType  ObjektBetegnelse
Del  EjendomType  ObjektId
Ejendom  EtageType
Etage  KomponentType
Komponent  RumType
Rum  TerraenType
Terraen


schema location:  http://it.bt.aau.dk/dacapo/dacapodocument.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://it.bt.aau.dk/dacapo/

Elements  Complex types
Dokument  DokumentType
LocationType

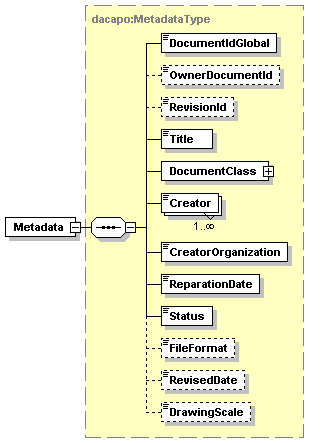

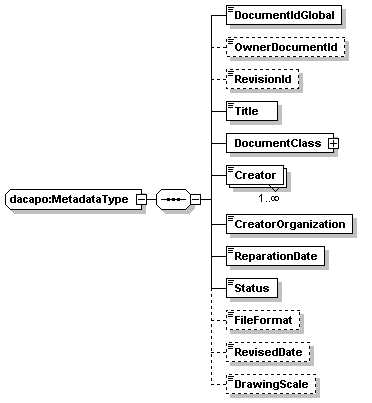

MetadataType


schema location:  http://it.bt.aau.dk/dacapo/dacapotyper.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://it.bt.aau.dk/dacapo/

Elements  Complex types  Simple types

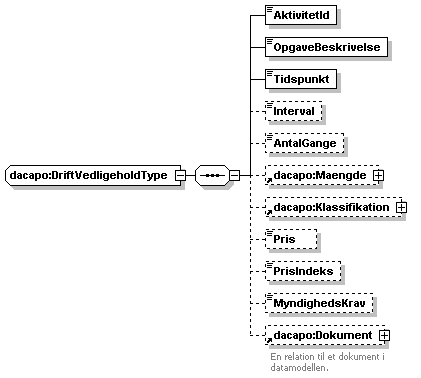

DriftVedligehold  DriftVedligeholdType  Betegnelse
FirmaKontakt  FirmaKontaktType  SIEnhed
Kategori  KategoriType  Telefonnummer
Klassifikation  KlassifikationType
Maengde  MaengdeType
Matrikel  MatrikelType

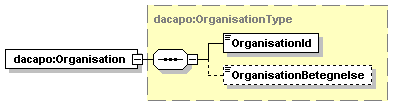

Organisation  OrganisationType

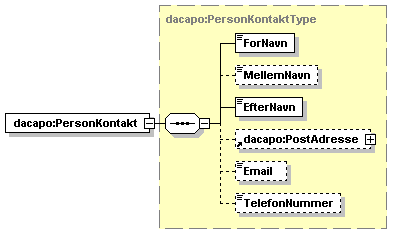

PersonKontakt  PersonKontaktType
PostAdresse  PostAdresseType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_StreetName.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
StreetName  StreetName


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_PostCodeIdentifier.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
PostCodeIdentifier  PostCodeIdentifierType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_DistrictName.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
DistrictName  DistrictNameType


schema location:  http://rep.oio.dk/xkom.dk/xml/schemas/2004/02/02/XKOM_EmailAddressIdentifier.xsd
attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/xkom.dk/xml/schemas/2004/02/02/

Elements  Simple types
EmailAddressIdentifier  EmailAddressIdentifierType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_PersonGivenName.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
PersonGivenName  PersonGivenNameType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_PersonMiddleName.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
PersonMiddleName  PersonMiddleNameType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_PersonSurnameName.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
PersonSurnameName  PersonSurnameNameType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_StreetBuildingIdentifier.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
StreetBuildingIdentifier  StreetBuildingIdentifierType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_PostOfficeBoxIdentifier.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
PostOfficeBoxIdentifier  PostOfficeBoxIdentifierType


schema location:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/DKCC_OrganisationName.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/

Elements  Simple types
OrganisationName  OrganisationNameType


schema location:  http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/KMS_LandParcelNoteTextType.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/

Simple types
LandParcelNoteTextType


schema location:  http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/KMS_LandParcelAreaType.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/

Simple types
LandParcelAreaType


schema location:  http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/CPR_MunicipalityName.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/

Elements  Simple types
MunicipalityName  MunicipalityNameType


schema location:  http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/CPR_AuthorityName.xsd
attribute form default:  qualified
element form default:  qualified
targetNamespace:  http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/

Elements  Simple types
AuthorityName  AuthorityNameType

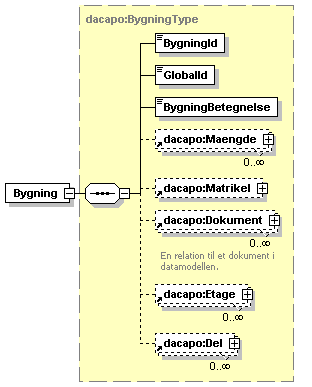

element Bygning
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:BygningType
properties
content complex
children BygningId GlobalId BygningBetegnelse dacapo:Maengde dacapo:Matrikel dacapo:Dokument dacapo:Etage dacapo:Del
used by
complexType EjendomType
source
<xs:element name="Bygning" type="dacapo:BygningType"/>

element DACAPO
diagram
namespace http://it.bt.aau.dk/dacapo/
properties
content complex
children ProjektData dacapo:Ejendom
annotation
documentation
Ver. 015
source
<xs:element name="DACAPO">
  <xs:annotation>
    <xs:documentation>Ver. 015</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="ProjektData">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="dacapo:FirmaKontakt"/>
            <xs:element name="OprettetDato">
              <xs:simpleType>
                <xs:restriction base="xs:date"/>
              </xs:simpleType>
            </xs:element>
            <xs:element name="ProjektInfo" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="dacapo:Ejendom" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DACAPO/ProjektData
diagram
namespace http://it.bt.aau.dk/dacapo/
properties
isRef 0
content complex
children dacapo:FirmaKontakt OprettetDato ProjektInfo
source
<xs:element name="ProjektData">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="dacapo:FirmaKontakt"/>
      <xs:element name="OprettetDato">
        <xs:simpleType>
          <xs:restriction base="xs:date"/>
        </xs:simpleType>
      </xs:element>
      <xs:element name="ProjektInfo" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DACAPO/ProjektData/OprettetDato
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:date
properties
isRef 0
content simple
source
<xs:element name="OprettetDato">
  <xs:simpleType>
    <xs:restriction base="xs:date"/>
  </xs:simpleType>
</xs:element>

element DACAPO/ProjektData/ProjektInfo
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="ProjektInfo" type="xs:string"/>

element Del
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:DelType
properties
content complex
children DelId DelBetegnelse GlobalId GarantiUdloeb dacapo:Dokument dacapo:Klassifikation dacapo:DriftVedligehold dacapo:FirmaKontakt dacapo:Komponent dacapo:Maengde
used by
complexTypes BygningType RumType TerraenType
source
<xs:element name="Del" type="dacapo:DelType"/>

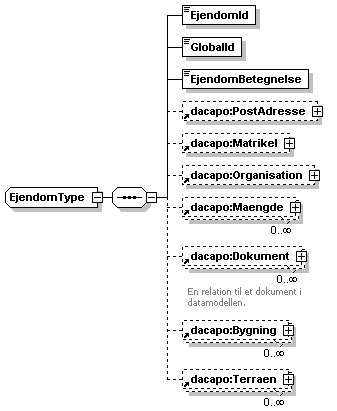

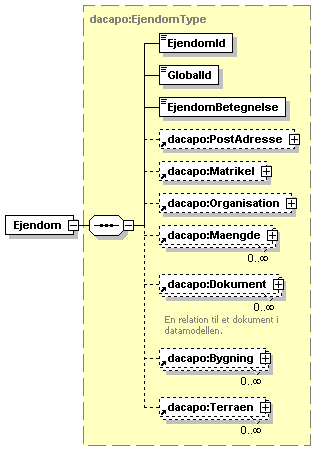

element Ejendom
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:EjendomType
properties
content complex
children EjendomId GlobalId EjendomBetegnelse dacapo:PostAdresse dacapo:Matrikel dacapo:Organisation dacapo:Maengde dacapo:Dokument dacapo:Bygning dacapo:Terraen
used by
element DACAPO
source
<xs:element name="Ejendom" type="dacapo:EjendomType"/>

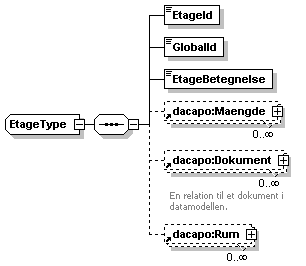

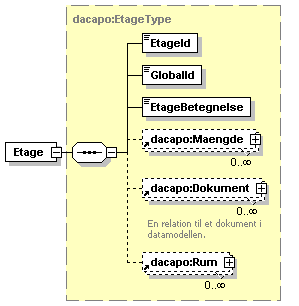

element Etage
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:EtageType
properties
content complex
children EtageId GlobalId EtageBetegnelse dacapo:Maengde dacapo:Dokument dacapo:Rum
used by
complexType BygningType
source
<xs:element name="Etage" type="dacapo:EtageType"/>

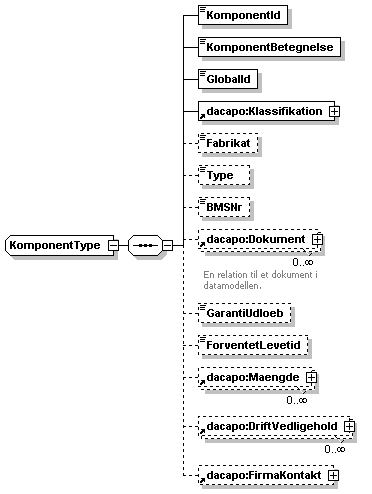

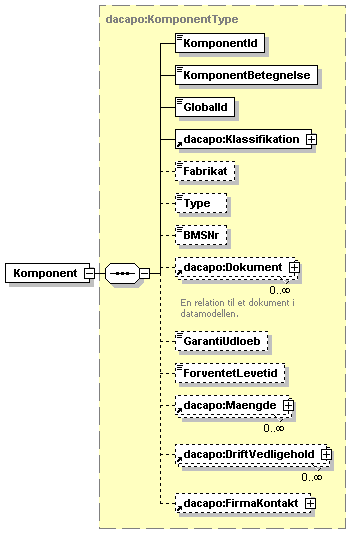

element Komponent
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:KomponentType
properties
content complex
children KomponentId KomponentBetegnelse GlobalId dacapo:Klassifikation Fabrikat Type BMSNr dacapo:Dokument GarantiUdloeb ForventetLevetid dacapo:Maengde dacapo:DriftVedligehold dacapo:FirmaKontakt
used by
complexType DelType
source
<xs:element name="Komponent" type="dacapo:KomponentType"/>

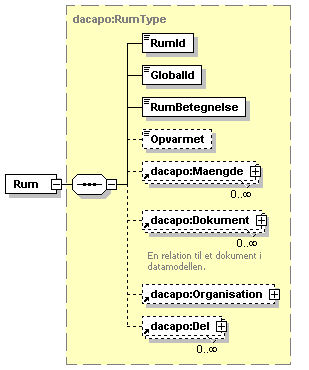

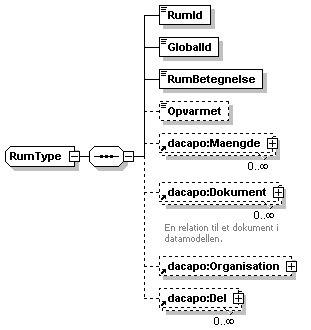

element Rum
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:RumType
properties
content complex
children RumId GlobalId RumBetegnelse Opvarmet dacapo:Maengde dacapo:Dokument dacapo:Organisation dacapo:Del
used by
complexType EtageType
source
<xs:element name="Rum" type="dacapo:RumType"/>

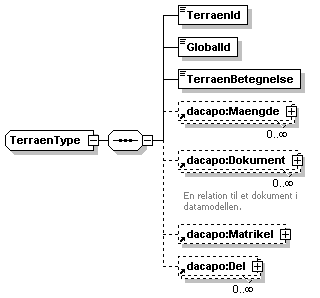

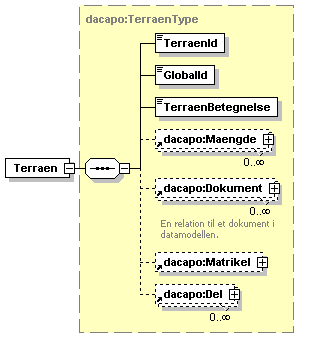

element Terraen
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:TerraenType
properties
content complex
children TerraenId GlobalId TerraenBetegnelse dacapo:Maengde dacapo:Dokument dacapo:Matrikel dacapo:Del
used by
complexType EjendomType
source
<xs:element name="Terraen" type="dacapo:TerraenType"/>

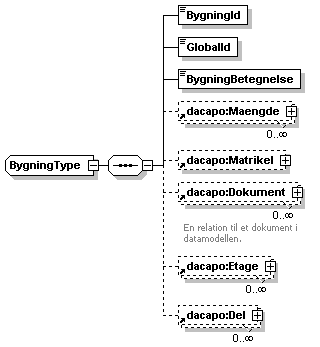

complexType BygningType
diagram
namespace http://it.bt.aau.dk/dacapo/
children BygningId GlobalId BygningBetegnelse dacapo:Maengde dacapo:Matrikel dacapo:Dokument dacapo:Etage dacapo:Del
used by
element Bygning
source
<xs:complexType name="BygningType">
  <xs:sequence>
    <xs:element name="BygningId" type="dacapo:ObjektId"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element name="BygningBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>

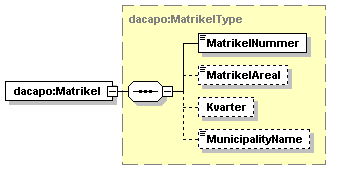

    <xs:element ref="dacapo:Matrikel" minOccurs="0"/>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Etage" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Del" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element BygningType/BygningId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="BygningId" type="dacapo:ObjektId"/>

element BygningType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element BygningType/BygningBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="BygningBetegnelse" type="dacapo:ObjektBetegnelse"/>

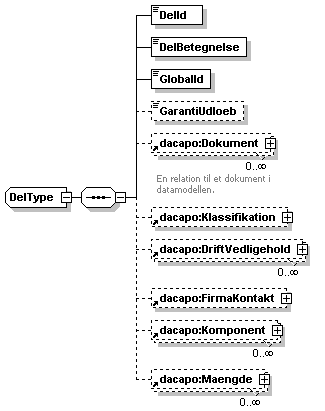

complexType DelType
diagram
namespace http://it.bt.aau.dk/dacapo/
children DelId DelBetegnelse GlobalId GarantiUdloeb dacapo:Dokument dacapo:Klassifikation dacapo:DriftVedligehold dacapo:FirmaKontakt dacapo:Komponent dacapo:Maengde
used by
element Del
source
<xs:complexType name="DelType">
  <xs:sequence>
    <xs:element name="DelId" type="dacapo:ObjektId"/>
    <xs:element name="DelBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element name="GarantiUdloeb" type="xs:date" minOccurs="0"/>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>

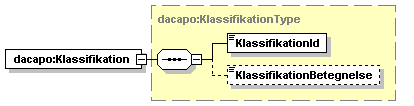

    <xs:element ref="dacapo:Klassifikation" minOccurs="0"/>
    <xs:element ref="dacapo:DriftVedligehold" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:FirmaKontakt" minOccurs="0"/>
    <xs:element ref="dacapo:Komponent" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element DelType/DelId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="DelId" type="dacapo:ObjektId"/>

element DelType/DelBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="DelBetegnelse" type="dacapo:ObjektBetegnelse"/>

element DelType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element DelType/GarantiUdloeb
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:date
properties
isRef 0
content simple
source
<xs:element name="GarantiUdloeb" type="xs:date" minOccurs="0"/>

complexType EjendomType
diagram
namespace http://it.bt.aau.dk/dacapo/
children EjendomId GlobalId EjendomBetegnelse dacapo:PostAdresse dacapo:Matrikel dacapo:Organisation dacapo:Maengde dacapo:Dokument dacapo:Bygning dacapo:Terraen
used by
element Ejendom
source
<xs:complexType name="EjendomType">
  <xs:sequence>
    <xs:element name="EjendomId" type="dacapo:ObjektId"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element name="EjendomBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element ref="dacapo:PostAdresse" minOccurs="0"/>
    <xs:element ref="dacapo:Matrikel" minOccurs="0"/>
    <xs:element ref="dacapo:Organisation" minOccurs="0"/>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Bygning" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Terraen" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element EjendomType/EjendomId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="EjendomId" type="dacapo:ObjektId"/>

element EjendomType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element EjendomType/EjendomBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="EjendomBetegnelse" type="dacapo:ObjektBetegnelse"/>

complexType EtageType
diagram
namespace http://it.bt.aau.dk/dacapo/
children EtageId GlobalId EtageBetegnelse dacapo:Maengde dacapo:Dokument dacapo:Rum
used by
element Etage
source
<xs:complexType name="EtageType">
  <xs:sequence>
    <xs:element name="EtageId" type="dacapo:ObjektId"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element name="EtageBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Rum" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element EtageType/EtageId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="EtageId" type="dacapo:ObjektId"/>

element EtageType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element EtageType/EtageBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="EtageBetegnelse" type="dacapo:ObjektBetegnelse"/>

complexType KomponentType
diagram
namespace http://it.bt.aau.dk/dacapo/
children KomponentId KomponentBetegnelse GlobalId dacapo:Klassifikation Fabrikat Type BMSNr dacapo:Dokument GarantiUdloeb ForventetLevetid dacapo:Maengde dacapo:DriftVedligehold dacapo:FirmaKontakt
used by
element Komponent
source
<xs:complexType name="KomponentType">
  <xs:sequence>
    <xs:element name="KomponentId" type="dacapo:ObjektId"/>
    <xs:element name="KomponentBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element ref="dacapo:Klassifikation"/>
    <xs:element name="Fabrikat" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="40"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Type" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="40"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="BMSNr" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="40"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="GarantiUdloeb" type="xs:date" minOccurs="0"/>
    <xs:element name="ForventetLevetid" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:integer">
          <xs:maxInclusive value="3"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:DriftVedligehold" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:FirmaKontakt" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element KomponentType/KomponentId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="KomponentId" type="dacapo:ObjektId"/>

element KomponentType/KomponentBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="KomponentBetegnelse" type="dacapo:ObjektBetegnelse"/>

element KomponentType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element KomponentType/Fabrikat
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 40
source
<xs:element name="Fabrikat" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element KomponentType/Type
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 40
source
<xs:element name="Type" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element KomponentType/BMSNr
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 40
source
<xs:element name="BMSNr" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element KomponentType/GarantiUdloeb
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:date
properties
isRef 0
content simple
source
<xs:element name="GarantiUdloeb" type="xs:date" minOccurs="0"/>

element KomponentType/ForventetLevetid
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:integer
properties
isRef 0
content simple
facets
maxInclusive 3
source
<xs:element name="ForventetLevetid" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:maxInclusive value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType RumType
diagram
namespace http://it.bt.aau.dk/dacapo/
children RumId GlobalId RumBetegnelse Opvarmet dacapo:Maengde dacapo:Dokument dacapo:Organisation dacapo:Del
used by
element Rum
source
<xs:complexType name="RumType">
  <xs:sequence>
    <xs:element name="RumId" type="dacapo:ObjektId"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element name="RumBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element name="Opvarmet" default="N" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="1"/>
          <xs:enumeration value="N"/>
          <xs:enumeration value="J"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Organisation" minOccurs="0"/>
    <xs:element ref="dacapo:Del" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element RumType/RumId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="RumId" type="dacapo:ObjektId"/>

element RumType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element RumType/RumBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="RumBetegnelse" type="dacapo:ObjektBetegnelse"/>

element RumType/Opvarmet
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
default N
facets
maxLength 1
enumeration N
enumeration J
source
<xs:element name="Opvarmet" default="N" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="1"/>
      <xs:enumeration value="N"/>
      <xs:enumeration value="J"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType TerraenType
diagram
namespace http://it.bt.aau.dk/dacapo/
children TerraenId GlobalId TerraenBetegnelse dacapo:Maengde dacapo:Dokument dacapo:Matrikel dacapo:Del
used by
element Terraen
source
<xs:complexType name="TerraenType">
  <xs:sequence>
    <xs:element name="TerraenId" type="dacapo:ObjektId"/>
    <xs:element name="GlobalId" type="dacapo:GlobalIdType"/>
    <xs:element name="TerraenBetegnelse" type="dacapo:ObjektBetegnelse"/>
    <xs:element ref="dacapo:Maengde" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Dokument" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="dacapo:Matrikel" minOccurs="0"/>
    <xs:element ref="dacapo:Del" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element TerraenType/TerraenId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektId
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="TerraenId" type="dacapo:ObjektId"/>

element TerraenType/GlobalId
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:GlobalIdType
properties
isRef 0
content simple
facets
minLength 1
source
<xs:element name="GlobalId" type="dacapo:GlobalIdType"/>

element TerraenType/TerraenBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:ObjektBetegnelse
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="TerraenBetegnelse" type="dacapo:ObjektBetegnelse"/>

simpleType GlobalIdType
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
used by
elements EjendomType/GlobalId BygningType/GlobalId EtageType/GlobalId RumType/GlobalId DelType/GlobalId KomponentType/GlobalId TerraenType/GlobalId
facets
minLength 1
source
<xs:simpleType name="GlobalIdType">
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>

simpleType ObjektBetegnelse
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
used by
elements BygningType/BygningBetegnelse DelType/DelBetegnelse EjendomType/EjendomBetegnelse EtageType/EtageBetegnelse KomponentType/KomponentBetegnelse RumType/RumBetegnelse TerraenType/TerraenBetegnelse
facets
minLength 1
maxLength 50
source
<xs:simpleType name="ObjektBetegnelse">
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>

simpleType ObjektId
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
used by
elements BygningType/BygningId DelType/DelId EjendomType/EjendomId EtageType/EtageId KomponentType/KomponentId RumType/RumId TerraenType/TerraenId
facets
minLength 1
maxLength 20
source
<xs:simpleType name="ObjektId">
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="20"/>
  </xs:restriction>
</xs:simpleType>

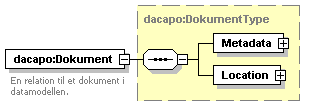

element dacapo:Dokument
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:DokumentType
properties
content complex
children Metadata Location
used by
complexTypes BygningType dacapo:DriftVedligeholdType DelType EjendomType EtageType KomponentType RumType TerraenType
annotation
documentation
En relation til et dokument i datamodellen.
source
<xs:element name="Dokument" type="dacapo:DokumentType">
  <xs:annotation>
    <xs:documentation>En relation til et dokument i datamodellen.</xs:documentation>
  </xs:annotation>
</xs:element>

complexType dacapo:DokumentType
diagram
namespace http://it.bt.aau.dk/dacapo/
children Metadata Location
used by
element dacapo:Dokument
source
<xs:complexType name="DokumentType">
  <xs:sequence>
    <xs:element name="Metadata" type="dacapo:MetadataType"/>
    <xs:element name="Location" type="dacapo:LocationType"/>
  </xs:sequence>
</xs:complexType>

element dacapo:DokumentType/Metadata
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:MetadataType
properties
isRef 0
content complex
children DocumentIdGlobal OwnerDocumentId RevisionId Title DocumentClass Creator CreatorOrganization ReparationDate Status FileFormat RevisedDate DrawingScale
source
<xs:element name="Metadata" type="dacapo:MetadataType"/>

element dacapo:DokumentType/Location
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:LocationType
properties
isRef 0
content complex
children URI
source
<xs:element name="Location" type="dacapo:LocationType"/>

complexType dacapo:LocationType
diagram
namespace http://it.bt.aau.dk/dacapo/
children URI
used by
element dacapo:DokumentType/Location
source
<xs:complexType name="LocationType">
  <xs:sequence>
    <xs:element name="URI" type="xs:anyURI"/>
  </xs:sequence>
</xs:complexType>

element dacapo:LocationType/URI
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:anyURI
properties
isRef 0
content simple
source
<xs:element name="URI" type="xs:anyURI"/>

complexType dacapo:MetadataType
diagram
namespace http://it.bt.aau.dk/dacapo/
children DocumentIdGlobal OwnerDocumentId RevisionId Title DocumentClass Creator CreatorOrganization ReparationDate Status FileFormat RevisedDate DrawingScale
used by
element dacapo:DokumentType/Metadata
source
<xs:complexType name="MetadataType">
  <xs:sequence>
    <xs:element name="DocumentIdGlobal" type="xs:string"/>
    <xs:element name="OwnerDocumentId" type="xs:string" minOccurs="0"/>
    <xs:element name="RevisionId" type="xs:string" minOccurs="0"/>
    <xs:element name="Title" type="xs:string"/>
    <xs:element name="DocumentClass">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="DocClass">
            <xs:simpleType>
              <xs:restriction base="xs:string">
                <xs:enumeration value="Arealdokumentation"/>
                <xs:enumeration value="Byggesagsdokumentation"/>
                <xs:enumeration value="Driftsdokumentation"/>
                <xs:enumeration value="Oekonomidokumentation"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="DocKind">
            <xs:simpleType>
              <xs:restriction base="xs:string"/>
            </xs:simpleType>
          </xs:element>
          <xs:element name="DBK" type="xs:string" minOccurs="0"/>
          <xs:element name="Other" type="xs:string" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Creator" type="xs:string" maxOccurs="unbounded"/>
    <xs:element name="CreatorOrganization" type="xs:string"/>
    <xs:element name="ReparationDate">
      <xs:simpleType>
        <xs:restriction base="xs:date"/>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Status">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="Checking"/>
          <xs:enumeration value="Commenting"/>
          <xs:enumeration value="Approval"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="FileFormat" type="xs:string" minOccurs="0"/>
    <xs:element name="RevisedDate" type="xs:date" minOccurs="0"/>
    <xs:element name="DrawingScale" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:MetadataType/DocumentIdGlobal
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="DocumentIdGlobal" type="xs:string"/>

element dacapo:MetadataType/OwnerDocumentId
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="OwnerDocumentId" type="xs:string" minOccurs="0"/>

element dacapo:MetadataType/RevisionId
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="RevisionId" type="xs:string" minOccurs="0"/>

element dacapo:MetadataType/Title
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="Title" type="xs:string"/>

element dacapo:MetadataType/DocumentClass
diagram
namespace http://it.bt.aau.dk/dacapo/
properties
isRef 0
content complex
children DocClass DocKind DBK Other
source
<xs:element name="DocumentClass">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="DocClass">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="Arealdokumentation"/>
            <xs:enumeration value="Byggesagsdokumentation"/>
            <xs:enumeration value="Driftsdokumentation"/>
            <xs:enumeration value="Oekonomidokumentation"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="DocKind">
        <xs:simpleType>
          <xs:restriction base="xs:string"/>
        </xs:simpleType>
      </xs:element>
      <xs:element name="DBK" type="xs:string" minOccurs="0"/>
      <xs:element name="Other" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element dacapo:MetadataType/DocumentClass/DocClass
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
enumeration Arealdokumentation
enumeration Byggesagsdokumentation
enumeration Driftsdokumentation
enumeration Oekonomidokumentation
source
<xs:element name="DocClass">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Arealdokumentation"/>
      <xs:enumeration value="Byggesagsdokumentation"/>
      <xs:enumeration value="Driftsdokumentation"/>
      <xs:enumeration value="Oekonomidokumentation"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:MetadataType/DocumentClass/DocKind
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
source
<xs:element name="DocKind">
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element dacapo:MetadataType/DocumentClass/DBK
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="DBK" type="xs:string" minOccurs="0"/>

element dacapo:MetadataType/DocumentClass/Other
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="Other" type="xs:string" minOccurs="0"/>

element dacapo:MetadataType/Creator
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="Creator" type="xs:string" maxOccurs="unbounded"/>

element dacapo:MetadataType/CreatorOrganization
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="CreatorOrganization" type="xs:string"/>

element dacapo:MetadataType/ReparationDate
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:date
properties
isRef 0
content simple
source
<xs:element name="ReparationDate">
  <xs:simpleType>
    <xs:restriction base="xs:date"/>
  </xs:simpleType>
</xs:element>

element dacapo:MetadataType/Status
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
enumeration Checking
enumeration Commenting
enumeration Approval
source
<xs:element name="Status">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Checking"/>
      <xs:enumeration value="Commenting"/>
      <xs:enumeration value="Approval"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:MetadataType/FileFormat
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="FileFormat" type="xs:string" minOccurs="0"/>

element dacapo:MetadataType/RevisedDate
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:date
properties
isRef 0
content simple
source
<xs:element name="RevisedDate" type="xs:date" minOccurs="0"/>

element dacapo:MetadataType/DrawingScale
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="DrawingScale" type="xs:string" minOccurs="0"/>

element dacapo:DriftVedligehold
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:DriftVedligeholdType
properties
content complex
children AktivitetId OpgaveBeskrivelse Tidspunkt Interval AntalGange dacapo:Maengde dacapo:Klassifikation Pris PrisIndeks MyndighedsKrav dacapo:Dokument
used by
complexTypes DelType KomponentType
source
<xs:element name="DriftVedligehold" type="dacapo:DriftVedligeholdType"/>

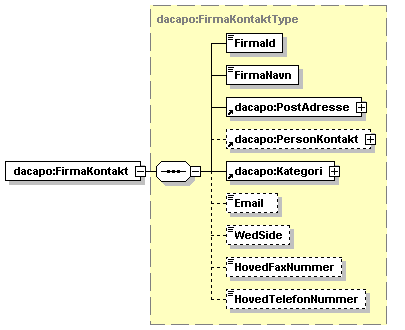

element dacapo:FirmaKontakt
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:FirmaKontaktType
properties
content complex
children FirmaId FirmaNavn dacapo:PostAdresse dacapo:PersonKontakt dacapo:Kategori Email WedSide HovedFaxNummer HovedTelefonNummer
used by
element DACAPO/ProjektData
complexTypes DelType KomponentType
source
<xs:element name="FirmaKontakt" type="dacapo:FirmaKontaktType"/>

element dacapo:Kategori
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:KategoriType
properties
content complex
children KategoriId KategoriBetegnelse
used by
complexType dacapo:FirmaKontaktType
source
<xs:element name="Kategori" type="dacapo:KategoriType"/>

element dacapo:Klassifikation
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:KlassifikationType
properties
content complex
children KlassifikationId KlassifikationBetegnelse
used by
complexTypes dacapo:DriftVedligeholdType DelType KomponentType
source
<xs:element name="Klassifikation" type="dacapo:KlassifikationType"/>

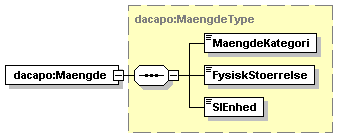

element dacapo:Maengde
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:MaengdeType
properties
content complex
children MaengdeKategori FysiskStoerrelse SIEnhed
used by
complexTypes BygningType dacapo:DriftVedligeholdType DelType EjendomType EtageType KomponentType RumType TerraenType
source
<xs:element name="Maengde" type="dacapo:MaengdeType"/>

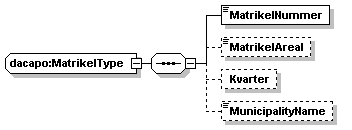

element dacapo:Matrikel
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:MatrikelType
properties
content complex
children MatrikelNummer MatrikelAreal Kvarter MunicipalityName
used by
complexTypes BygningType EjendomType TerraenType
source
<xs:element name="Matrikel" type="dacapo:MatrikelType"/>

element dacapo:Organisation
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:OrganisationType
properties
content complex
children OrganisationId OrganisationBetegnelse
used by
complexTypes EjendomType RumType
source
<xs:element name="Organisation" type="dacapo:OrganisationType"/>

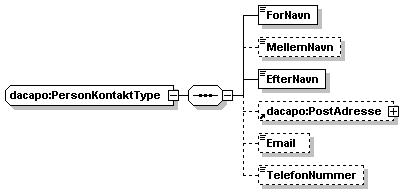

element dacapo:PersonKontakt
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:PersonKontaktType
properties
content complex
children ForNavn MellemNavn EfterNavn dacapo:PostAdresse Email TelefonNummer
used by
complexType dacapo:FirmaKontaktType
source
<xs:element name="PersonKontakt" type="dacapo:PersonKontaktType"/>

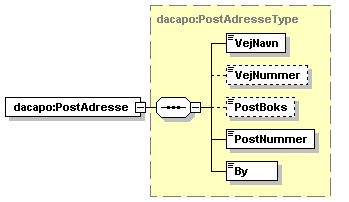

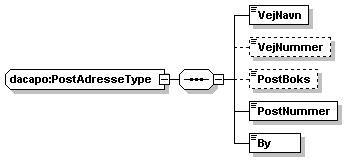

element dacapo:PostAdresse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:PostAdresseType
properties
content complex
children VejNavn VejNummer PostBoks PostNummer By
used by
complexTypes dacapo:FirmaKontaktType dacapo:PersonKontaktType EjendomType
source
<xs:element name="PostAdresse" type="dacapo:PostAdresseType"/>

complexType dacapo:DriftVedligeholdType
diagram
namespace http://it.bt.aau.dk/dacapo/
children AktivitetId OpgaveBeskrivelse Tidspunkt Interval AntalGange dacapo:Maengde dacapo:Klassifikation Pris PrisIndeks MyndighedsKrav dacapo:Dokument
used by
element dacapo:DriftVedligehold
source
<xs:complexType name="DriftVedligeholdType">
  <xs:sequence>
    <xs:element name="AktivitetId">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="20"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="OpgaveBeskrivelse">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:whiteSpace value="preserve"/>
          <xs:maxLength value="60"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Tidspunkt" type="xs:date"/>
    <xs:element name="Interval" default="År" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="Uge"/>
          <xs:enumeration value="Måned"/>
          <xs:enumeration value="År"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="AntalGange" type="xs:integer" default="1" minOccurs="0"/>
    <xs:element ref="dacapo:Maengde" minOccurs="0"/>
    <xs:element ref="dacapo:Klassifikation" minOccurs="0"/>
    <xs:element name="Pris" type="xs:decimal" minOccurs="0"/>
    <xs:element name="PrisIndeks" type="xs:decimal" minOccurs="0"/>
    <xs:element name="MyndighedsKrav" default="N" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="N"/>
          <xs:enumeration value="J"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element ref="dacapo:Dokument" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:DriftVedligeholdType/AktivitetId
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 20
source
<xs:element name="AktivitetId">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="20"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:DriftVedligeholdType/OpgaveBeskrivelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 60
whiteSpace preserve
source
<xs:element name="OpgaveBeskrivelse">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:whiteSpace value="preserve"/>
      <xs:maxLength value="60"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:DriftVedligeholdType/Tidspunkt
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:date
properties
isRef 0
content simple
source
<xs:element name="Tidspunkt" type="xs:date"/>

element dacapo:DriftVedligeholdType/Interval
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
default År
facets
enumeration Uge
enumeration Måned
enumeration År
source
<xs:element name="Interval" default="År" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Uge"/>
      <xs:enumeration value="Måned"/>
      <xs:enumeration value="År"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:DriftVedligeholdType/AntalGange
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:integer
properties
isRef 0
content simple
default 1
source
<xs:element name="AntalGange" type="xs:integer" default="1" minOccurs="0"/>

element dacapo:DriftVedligeholdType/Pris
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:decimal
properties
isRef 0
content simple
source
<xs:element name="Pris" type="xs:decimal" minOccurs="0"/>

element dacapo:DriftVedligeholdType/PrisIndeks
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:decimal
properties
isRef 0
content simple
source
<xs:element name="PrisIndeks" type="xs:decimal" minOccurs="0"/>

element dacapo:DriftVedligeholdType/MyndighedsKrav
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
default N
facets
enumeration N
enumeration J
source
<xs:element name="MyndighedsKrav" default="N" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="N"/>
      <xs:enumeration value="J"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

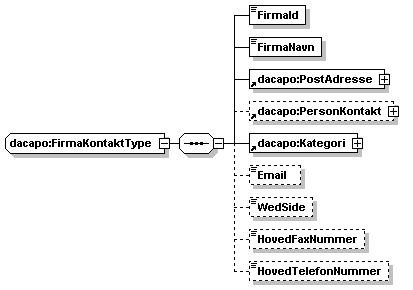

complexType dacapo:FirmaKontaktType
diagram
namespace http://it.bt.aau.dk/dacapo/
children FirmaId FirmaNavn dacapo:PostAdresse dacapo:PersonKontakt dacapo:Kategori Email WedSide HovedFaxNummer HovedTelefonNummer
used by
element dacapo:FirmaKontakt
source
<xs:complexType name="FirmaKontaktType">
  <xs:sequence>
    <xs:element name="FirmaId" type="xs:string"/>
    <xs:element name="FirmaNavn" type="dkcc:OrganisationNameType"/>
    <xs:element ref="dacapo:PostAdresse"/>
    <xs:element ref="dacapo:PersonKontakt" minOccurs="0"/>
    <xs:element ref="dacapo:Kategori"/>
    <xs:element name="Email" type="xkom:EmailAddressIdentifierType" minOccurs="0"/>
    <xs:element name="WedSide" type="xs:anyURI" minOccurs="0"/>
    <xs:element name="HovedFaxNummer" type="dacapo:Telefonnummer" minOccurs="0"/>
    <xs:element name="HovedTelefonNummer" type="dacapo:Telefonnummer" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:FirmaKontaktType/FirmaId
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:string
properties
isRef 0
content simple
source
<xs:element name="FirmaId" type="xs:string"/>

element dacapo:FirmaKontaktType/FirmaNavn
diagram
namespace http://it.bt.aau.dk/dacapo/
type OrganisationNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="FirmaNavn" type="dkcc:OrganisationNameType"/>

element dacapo:FirmaKontaktType/Email
diagram
namespace http://it.bt.aau.dk/dacapo/
type EmailAddressIdentifierType
properties
isRef 0
content simple
facets
pattern [^>\(\)\[\]\\\.,;:@\s]{0,191}@[\S-[@]]{1,64}
source
<xs:element name="Email" type="xkom:EmailAddressIdentifierType" minOccurs="0"/>

element dacapo:FirmaKontaktType/WedSide
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:anyURI
properties
isRef 0
content simple
source
<xs:element name="WedSide" type="xs:anyURI" minOccurs="0"/>

element dacapo:FirmaKontaktType/HovedFaxNummer
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:Telefonnummer
properties
isRef 0
content simple
facets
minLength 8
maxLength 17
source
<xs:element name="HovedFaxNummer" type="dacapo:Telefonnummer" minOccurs="0"/>

element dacapo:FirmaKontaktType/HovedTelefonNummer
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:Telefonnummer
properties
isRef 0
content simple
facets
minLength 8
maxLength 17
source
<xs:element name="HovedTelefonNummer" type="dacapo:Telefonnummer" minOccurs="0"/>

complexType dacapo:KategoriType
diagram
namespace http://it.bt.aau.dk/dacapo/
children KategoriId KategoriBetegnelse
used by
element dacapo:Kategori
source
<xs:complexType name="KategoriType">
  <xs:sequence>
    <xs:element name="KategoriId">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="10"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="KategoriBetegnelse" type="dacapo:Betegnelse" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:KategoriType/KategoriId
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 10
source
<xs:element name="KategoriId">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:KategoriType/KategoriBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:Betegnelse
properties
isRef 0
content simple
facets
maxLength 40
source
<xs:element name="KategoriBetegnelse" type="dacapo:Betegnelse" minOccurs="0"/>

complexType dacapo:KlassifikationType
diagram
namespace http://it.bt.aau.dk/dacapo/
children KlassifikationId KlassifikationBetegnelse
used by
element dacapo:Klassifikation
source
<xs:complexType name="KlassifikationType">
  <xs:sequence>
    <xs:element name="KlassifikationId">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="6"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="KlassifikationBetegnelse" type="dacapo:Betegnelse" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:KlassifikationType/KlassifikationId
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 6
source
<xs:element name="KlassifikationId">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="6"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:KlassifikationType/KlassifikationBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:Betegnelse
properties
isRef 0
content simple
facets
maxLength 40
source
<xs:element name="KlassifikationBetegnelse" type="dacapo:Betegnelse" minOccurs="0"/>

complexType dacapo:MaengdeType
diagram
namespace http://it.bt.aau.dk/dacapo/
children MaengdeKategori FysiskStoerrelse SIEnhed
used by
element dacapo:Maengde
source
<xs:complexType name="MaengdeType">
  <xs:sequence>
    <xs:element name="MaengdeKategori">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="10"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="FysiskStoerrelse" type="xs:decimal"/>
    <xs:element name="SIEnhed" type="dacapo:SIEnhed"/>
  </xs:sequence>
</xs:complexType>

element dacapo:MaengdeType/MaengdeKategori
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 10
source
<xs:element name="MaengdeKategori">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:MaengdeType/FysiskStoerrelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type xs:decimal
properties
isRef 0
content simple
source
<xs:element name="FysiskStoerrelse" type="xs:decimal"/>

element dacapo:MaengdeType/SIEnhed
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:SIEnhed
properties
isRef 0
content simple
facets
maxLength 10
source
<xs:element name="SIEnhed" type="dacapo:SIEnhed"/>

complexType dacapo:MatrikelType
diagram
namespace http://it.bt.aau.dk/dacapo/
children MatrikelNummer MatrikelAreal Kvarter MunicipalityName
used by
element dacapo:Matrikel
source
<xs:complexType name="MatrikelType">
  <xs:sequence>
    <xs:element name="MatrikelNummer" type="kms:LandParcelNoteTextType"/>
    <xs:element name="MatrikelAreal" type="kms:LandParcelAreaType" minOccurs="0"/>
    <xs:element name="Kvarter" minOccurs="0"/>
    <xs:element name="MunicipalityName" type="cpr:MunicipalityNameType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:MatrikelType/MatrikelNummer
diagram
namespace http://it.bt.aau.dk/dacapo/
type LandParcelNoteTextType
properties
isRef 0
content simple
facets
maxLength 32
source
<xs:element name="MatrikelNummer" type="kms:LandParcelNoteTextType"/>

element dacapo:MatrikelType/MatrikelAreal
diagram
namespace http://it.bt.aau.dk/dacapo/
type LandParcelAreaType
properties
isRef 0
content simple
facets
totalDigits 11
source
<xs:element name="MatrikelAreal" type="kms:LandParcelAreaType" minOccurs="0"/>

element dacapo:MatrikelType/Kvarter
diagram
namespace http://it.bt.aau.dk/dacapo/
properties
isRef 0
source
<xs:element name="Kvarter" minOccurs="0"/>

element dacapo:MatrikelType/MunicipalityName
diagram
namespace http://it.bt.aau.dk/dacapo/
type MunicipalityNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="MunicipalityName" type="cpr:MunicipalityNameType" minOccurs="0"/>

complexType dacapo:OrganisationType
diagram
namespace http://it.bt.aau.dk/dacapo/
children OrganisationId OrganisationBetegnelse
used by
element dacapo:Organisation
source
<xs:complexType name="OrganisationType">
  <xs:sequence>
    <xs:element name="OrganisationId">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:maxLength value="10"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="OrganisationBetegnelse" type="dkcc:OrganisationNameType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:OrganisationType/OrganisationId
diagram
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
properties
isRef 0
content simple
facets
maxLength 10
source
<xs:element name="OrganisationId">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dacapo:OrganisationType/OrganisationBetegnelse
diagram
namespace http://it.bt.aau.dk/dacapo/
type OrganisationNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="OrganisationBetegnelse" type="dkcc:OrganisationNameType" minOccurs="0"/>

complexType dacapo:PersonKontaktType
diagram
namespace http://it.bt.aau.dk/dacapo/
children ForNavn MellemNavn EfterNavn dacapo:PostAdresse Email TelefonNummer
used by
element dacapo:PersonKontakt
source
<xs:complexType name="PersonKontaktType">
  <xs:sequence>
    <xs:element name="ForNavn" type="dkcc:PersonGivenNameType"/>
    <xs:element name="MellemNavn" type="dkcc:PersonMiddleNameType" minOccurs="0"/>
    <xs:element name="EfterNavn" type="dkcc:PersonSurnameNameType"/>
    <xs:element ref="dacapo:PostAdresse" minOccurs="0"/>
    <xs:element name="Email" type="xkom:EmailAddressIdentifierType" minOccurs="0"/>
    <xs:element name="TelefonNummer" type="dacapo:Telefonnummer" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dacapo:PersonKontaktType/ForNavn
diagram
namespace http://it.bt.aau.dk/dacapo/
type PersonGivenNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 50
source
<xs:element name="ForNavn" type="dkcc:PersonGivenNameType"/>

element dacapo:PersonKontaktType/MellemNavn
diagram
namespace http://it.bt.aau.dk/dacapo/
type PersonMiddleNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="MellemNavn" type="dkcc:PersonMiddleNameType" minOccurs="0"/>

element dacapo:PersonKontaktType/EfterNavn
diagram
namespace http://it.bt.aau.dk/dacapo/
type PersonSurnameNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="EfterNavn" type="dkcc:PersonSurnameNameType"/>

element dacapo:PersonKontaktType/Email
diagram
namespace http://it.bt.aau.dk/dacapo/
type EmailAddressIdentifierType
properties
isRef 0
content simple
facets
pattern [^>\(\)\[\]\\\.,;:@\s]{0,191}@[\S-[@]]{1,64}
source
<xs:element name="Email" type="xkom:EmailAddressIdentifierType" minOccurs="0"/>

element dacapo:PersonKontaktType/TelefonNummer
diagram
namespace http://it.bt.aau.dk/dacapo/
type dacapo:Telefonnummer
properties
isRef 0
content simple
facets
minLength 8
maxLength 17
source
<xs:element name="TelefonNummer" type="dacapo:Telefonnummer" minOccurs="0"/>

complexType dacapo:PostAdresseType
diagram
namespace http://it.bt.aau.dk/dacapo/
children VejNavn VejNummer PostBoks PostNummer By
used by
element dacapo:PostAdresse
source
<xs:complexType name="PostAdresseType">
  <xs:sequence>
    <xs:element name="VejNavn" type="dkcc:StreetName"/>
    <xs:element name="VejNummer" type="dkcc:StreetBuildingIdentifierType" minOccurs="0"/>
    <xs:element name="PostBoks" type="dkcc:PostOfficeBoxIdentifierType" minOccurs="0"/>
    <xs:element name="PostNummer" type="dkcc:PostCodeIdentifierType"/>
    <xs:element name="By" type="dkcc:DistrictNameType"/>
  </xs:sequence>
</xs:complexType>

element dacapo:PostAdresseType/VejNavn
diagram
namespace http://it.bt.aau.dk/dacapo/
type StreetName
properties
isRef 0
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="VejNavn" type="dkcc:StreetName"/>

element dacapo:PostAdresseType/VejNummer
diagram
namespace http://it.bt.aau.dk/dacapo/
type StreetBuildingIdentifierType
properties
isRef 0
content simple
facets
pattern ([1-9]|[1-9][0-9]|[1-9][0-9]{2})|([1-9][A-Z]|[1-9][0-9][A-Z]|[1-9][0-9]{2}[A-Z])
source
<xs:element name="VejNummer" type="dkcc:StreetBuildingIdentifierType" minOccurs="0"/>

element dacapo:PostAdresseType/PostBoks
diagram
namespace http://it.bt.aau.dk/dacapo/
type PostOfficeBoxIdentifierType
properties
isRef 0
content simple
facets
minLength 1
maxLength 4
source
<xs:element name="PostBoks" type="dkcc:PostOfficeBoxIdentifierType" minOccurs="0"/>

element dacapo:PostAdresseType/PostNummer
diagram
namespace http://it.bt.aau.dk/dacapo/
type PostCodeIdentifierType
properties
isRef 0
content simple
facets
pattern [0-9]{4}
source
<xs:element name="PostNummer" type="dkcc:PostCodeIdentifierType"/>

element dacapo:PostAdresseType/By
diagram
namespace http://it.bt.aau.dk/dacapo/
type DistrictNameType
properties
isRef 0
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="By" type="dkcc:DistrictNameType"/>

simpleType dacapo:Betegnelse
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
used by
elements dacapo:KategoriType/KategoriBetegnelse dacapo:KlassifikationType/KlassifikationBetegnelse
facets
maxLength 40
source
<xs:simpleType name="Betegnelse">
  <xs:restriction base="xs:string">
    <xs:maxLength value="40"/>
  </xs:restriction>
</xs:simpleType>

simpleType dacapo:SIEnhed
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
used by
element dacapo:MaengdeType/SIEnhed
facets
maxLength 10
source
<xs:simpleType name="SIEnhed">
  <xs:restriction base="xs:string">
    <xs:maxLength value="10"/>
  </xs:restriction>
</xs:simpleType>

simpleType dacapo:Telefonnummer
namespace http://it.bt.aau.dk/dacapo/
type restriction of xs:string
used by
elements dacapo:FirmaKontaktType/HovedFaxNummer dacapo:FirmaKontaktType/HovedTelefonNummer dacapo:PersonKontaktType/TelefonNummer
facets
minLength 8
maxLength 17
source
<xs:simpleType name="Telefonnummer">
  <xs:restriction base="xs:string">
    <xs:minLength value="8"/>
    <xs:maxLength value="17"/>
  </xs:restriction>
</xs:simpleType>

element StreetName
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type StreetName
properties
content simple
facets
minLength 1
maxLength 40
annotation
documentation
The approved name of a road, a street, a square, a path and the like. Further more street names can be connected to other particularly limited areas like garden associations or summer residence areas without road network, large commercial or institutional areas with a large number of buildings, smaller islands without road network, larger sporting facilities and the like.
source
<xs:element name="StreetName" type="dkcc:StreetName">
  <xs:annotation>
    <xs:documentation>The approved name of a road, a street, a square, a path and the like. Further more street names can be connected to other particularly limited areas like garden associations or summer residence areas without road network, large commercial or institutional areas with a large number of buildings, smaller islands without road network, larger sporting facilities and the like.
			</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType StreetName
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements StreetName dacapo:PostAdresseType/VejNavn
facets
minLength 1
maxLength 40
source
<xs:simpleType name="StreetName">
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
  </xs:restriction>
</xs:simpleType>

element PostCodeIdentifier
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type PostCodeIdentifierType
properties
content simple
facets
pattern [0-9]{4}
annotation
documentation
The postal departments nationwide postal code.
source
<xs:element name="PostCodeIdentifier" type="dkcc:PostCodeIdentifierType">
  <xs:annotation>
    <xs:documentation>The postal departments nationwide postal code.</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType PostCodeIdentifierType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements PostCodeIdentifier dacapo:PostAdresseType/PostNummer
facets
pattern [0-9]{4}
source
<xs:simpleType name="PostCodeIdentifierType">
  <xs:restriction base="string">
    <xs:pattern value="[0-9]{4}"/>
  </xs:restriction>
</xs:simpleType>

element DistrictName
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type DistrictNameType
properties
content simple
facets
minLength 1
maxLength 20
annotation
documentation

			Declares the name of a postal district in plain text.
The field contains 20 positions, which enables it to fit a window envelope
together with the postal code and one free position in addition. The postal
district is defined by municipalitycode, roadcode, postalcode, housenumber
from/to together with a code, which declares whether the roadsection in
question contains even or uneven housenumbers.
source
<xs:element name="DistrictName" type="dkcc:DistrictNameType">
  <xs:annotation>
    <xs:documentation>
			Declares the name of a postal district in plain text.
The field contains 20 positions, which enables it to fit a window envelope
together with the postal code and one free position in addition. The postal
district is defined by municipalitycode, roadcode, postalcode, housenumber
from/to together with a code, which declares whether the roadsection in
question contains even or uneven housenumbers.
			</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType DistrictNameType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements dacapo:PostAdresseType/By DistrictName
facets
minLength 1
maxLength 20
source
<xs:simpleType name="DistrictNameType">
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="20"/>
  </xs:restriction>
</xs:simpleType>

element EmailAddressIdentifier
diagram
namespace http://rep.oio.dk/xkom.dk/xml/schemas/2004/02/02/
type EmailAddressIdentifierType
properties
content simple
facets
pattern [^>\(\)\[\]\\\.,;:@\s]{0,191}@[\S-[@]]{1,64}
source
<xs:element name="EmailAddressIdentifier" type="xkom:EmailAddressIdentifierType">
  <xs:annotation>
    <xs:documentation source="http://rep.oio.dk/xkom.dk/xml/schemas/2004/02/02/xkom_emailaddressidentifier.xsd.meta.xml"/>
  </xs:annotation>
</xs:element>

simpleType EmailAddressIdentifierType
namespace http://rep.oio.dk/xkom.dk/xml/schemas/2004/02/02/
type restriction of xs:token
used by
elements dacapo:PersonKontaktType/Email dacapo:FirmaKontaktType/Email EmailAddressIdentifier
facets
pattern [^>\(\)\[\]\\\.,;:@\s]{0,191}@[\S-[@]]{1,64}
source
<xs:simpleType name="EmailAddressIdentifierType">
  <xs:restriction base="token">
    <xs:pattern value="[^>\(\)\[\]\\\.,;:@\s]{0,191}@[\S-[@]]{1,64}"/>
  </xs:restriction>
</xs:simpleType>

element PersonGivenName
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type PersonGivenNameType
properties
content simple
facets
minLength 1
maxLength 50
annotation
documentation
Declaration of an individual’s first name(s).
source
<xs:element name="PersonGivenName" type="dkcc:PersonGivenNameType">
  <xs:annotation>
    <xs:documentation>Declaration of an individual’s first name(s).</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType PersonGivenNameType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements dacapo:PersonKontaktType/ForNavn PersonGivenName
facets
minLength 1
maxLength 50
source
<xs:simpleType name="PersonGivenNameType">
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>

element PersonMiddleName
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type PersonMiddleNameType
properties
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="PersonMiddleName" type="dkcc:PersonMiddleNameType"/>

simpleType PersonMiddleNameType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements dacapo:PersonKontaktType/MellemNavn PersonMiddleName
facets
minLength 1
maxLength 40
annotation
documentation
Declaration of an individual’s middle name(s).
source
<xs:simpleType name="PersonMiddleNameType">
  <xs:annotation>
    <xs:documentation>Declaration of an individual’s middle name(s).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
  </xs:restriction>
</xs:simpleType>

element PersonSurnameName
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type PersonSurnameNameType
properties
content simple
facets
minLength 1
maxLength 40
source
<xs:element name="PersonSurnameName" type="dkcc:PersonSurnameNameType"/>

simpleType PersonSurnameNameType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements dacapo:PersonKontaktType/EfterNavn PersonSurnameName
facets
minLength 1
maxLength 40
annotation
documentation
Declaration of an individuals surname.
source
<xs:simpleType name="PersonSurnameNameType">
  <xs:annotation>
    <xs:documentation>Declaration of an individuals surname.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
  </xs:restriction>
</xs:simpleType>

element StreetBuildingIdentifier
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type StreetBuildingIdentifierType
properties
content simple
facets
pattern ([1-9]|[1-9][0-9]|[1-9][0-9]{2})|([1-9][A-Z]|[1-9][0-9][A-Z]|[1-9][0-9]{2}[A-Z])
annotation
documentation

			Numeric identification (da: house number ~ 'husnummer') including an optional letter, which identifies a certain access to a building, a plot/piece of land or a plant etc. based on the named road or street which gives access hereto. The identifier is determined in increasing numerical and letter order along the road, normally with even numbers on the right side and odd numbers on the left side of the road.
source
<xs:element name="StreetBuildingIdentifier" type="dkcc:StreetBuildingIdentifierType">
  <xs:annotation>
    <xs:documentation>
			Numeric identification (da: house number ~ 'husnummer') including an optional letter, which identifies a certain access to a building, a plot/piece of land or a plant etc. based on the named road or street which gives access hereto. The identifier is determined in increasing numerical and letter order along the road, normally with even numbers on the right side and odd numbers on the left side of the road.
 			</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType StreetBuildingIdentifierType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements StreetBuildingIdentifier dacapo:PostAdresseType/VejNummer
facets
pattern ([1-9]|[1-9][0-9]|[1-9][0-9]{2})|([1-9][A-Z]|[1-9][0-9][A-Z]|[1-9][0-9]{2}[A-Z])
source
<xs:simpleType name="StreetBuildingIdentifierType">
  <xs:restriction base="string">
    <xs:pattern value="([1-9]|[1-9][0-9]|[1-9][0-9]{2})|([1-9][A-Z]|[1-9][0-9][A-Z]|[1-9][0-9]{2}[A-Z])"/>
  </xs:restriction>
</xs:simpleType>

element PostOfficeBoxIdentifier
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type PostOfficeBoxIdentifierType
properties
content simple
facets
minLength 1
maxLength 4
annotation
documentation

		Declaration of a Post Office Box.
source
<xs:element name="PostOfficeBoxIdentifier" type="dkcc:PostOfficeBoxIdentifierType">
  <xs:annotation>
    <xs:documentation>
		Declaration of a Post Office Box.
      </xs:documentation>
  </xs:annotation>
</xs:element>

simpleType PostOfficeBoxIdentifierType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements dacapo:PostAdresseType/PostBoks PostOfficeBoxIdentifier
facets
minLength 1
maxLength 4
annotation
documentation
Declaration of a Post Office Box.
source
<xs:simpleType name="PostOfficeBoxIdentifierType">
  <xs:annotation>
    <xs:documentation>Declaration of a Post Office Box.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="4"/>
  </xs:restriction>
</xs:simpleType>

element OrganisationName
diagram
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type OrganisationNameType
properties
content simple
facets
minLength 1
maxLength 40
annotation
documentation
Name of an organisation
source
<xs:element name="OrganisationName" type="dkcc:OrganisationNameType">
  <xs:annotation>
    <xs:documentation>Name of an organisation</xs:documentation>
  </xs:annotation>
</xs:element>

simpleType OrganisationNameType
namespace http://rep.oio.dk/ebxml/xml/schemas/dkcc/2003/02/13/
type restriction of xs:string
used by
elements dacapo:FirmaKontaktType/FirmaNavn dacapo:OrganisationType/OrganisationBetegnelse OrganisationName
facets
minLength 1
maxLength 40
source
<xs:simpleType name="OrganisationNameType">
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
  </xs:restriction>
</xs:simpleType>

simpleType LandParcelNoteTextType
namespace http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/
type restriction of xs:string
used by
element dacapo:MatrikelType/MatrikelNummer
facets
maxLength 32
source
<xs:simpleType name="LandParcelNoteTextType">
  <xs:annotation>
    <xs:documentation source="http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/KMS_LandParcelNoteTextType.xsd.meta.xml"/>
  </xs:annotation>
  <xs:restriction base="string">
    <xs:maxLength value="32"/>
  </xs:restriction>
</xs:simpleType>

simpleType LandParcelAreaType
namespace http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/
type restriction of xs:int
used by
element dacapo:MatrikelType/MatrikelAreal
facets
totalDigits 11
source
<xs:simpleType name="LandParcelAreaType">
  <xs:annotation>
    <xs:documentation source="http://rep.oio.dk/kms.dk/xml/schemas/2003/09/19/KMS_LandParcelAreaType.xsd.meta.xml"/>
  </xs:annotation>
  <xs:restriction base="int">
    <xs:totalDigits value="11"/>
  </xs:restriction>
</xs:simpleType>

element MunicipalityName
diagram
namespace http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/
type MunicipalityNameType
properties
content simple
facets
minLength 1
maxLength 20
source
<xs:element name="MunicipalityName" type="cpr:MunicipalityNameType"/>

simpleType MunicipalityNameType
namespace http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/
type AuthorityNameType
used by
elements MunicipalityName dacapo:MatrikelType/MunicipalityName
facets
minLength 1
maxLength 20
source
<xs:simpleType name="MunicipalityNameType">
  <xs:restriction base="cpr:AuthorityNameType"/>
</xs:simpleType>

element AuthorityName
diagram
namespace http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/
type AuthorityNameType
properties
content simple
facets
minLength 1
maxLength 20
annotation
documentation
Plain text field, which declares the name of a authority like municipality, county and parish. Every authority belongs to a specific authoritycode.
source
<xs:element name="AuthorityName" type="cpr:AuthorityNameType">
  <xs:annotation>
    <xs:documentation>Plain text field, which declares the name of a authority like municipality, county and parish. Every authority belongs to a specific authoritycode.
 </xs:documentation>
  </xs:annotation>
</xs:element>

simpleType AuthorityNameType
namespace http://rep.oio.dk/cpr.dk/xml/schemas/core/2002/06/28/
type restriction of xs:string
used by
element AuthorityName
simpleType MunicipalityNameType
facets
minLength 1
maxLength 20
source
<xs:simpleType name="AuthorityNameType">
  <xs:restriction base="string">
    <xs:minLength value="1"/>
    <xs:maxLength value="20"/>
  </xs:restriction>
</xs:simpleType>


XML Schema documentation generated with XMLSpy Schema Editor http://www.altova.com/xmlspy
